Flir Canada T840 and Flir T860 IR Camera

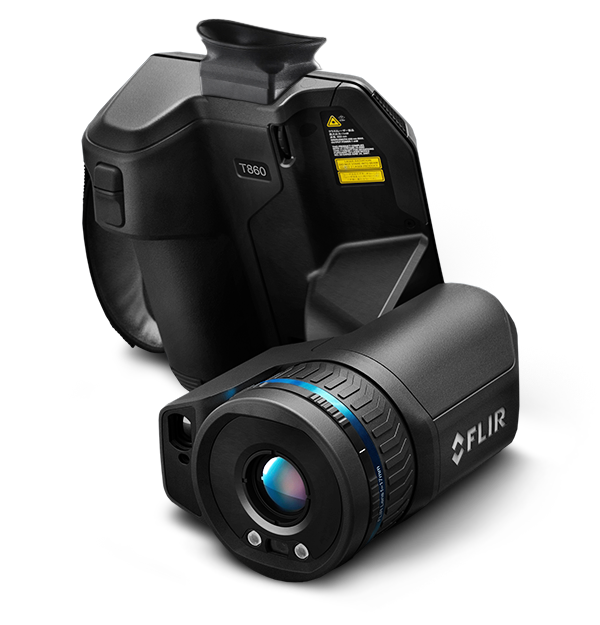

The FLIR T860 thermal camera is designed to improve visibility and streamline inspections of critical assets, whether you're surveying substation components, manufacturing equipment, or facility electro-mechanical systems. Equipped with a color viewfinder and 180° rotating lens platform, the T860 is comfortable to use and easy to see under bright conditions.
An optional on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. Avoid costly power outages and plant shutdowns through regular predictive maintenance with the T860.
-
Develop inspection routes in FLIR Thermal Studio Pro and upload to a T860 with the Inspection Routing module (optional) to streamline surveys and better manage critical data
-
AVOID COSTLY OUTAGES AND COMPONENT FAILURES
Quickly assess the thermal health of electrical systems, mechanical equipment, and facility-wide systems from any vantage point, in any lighting condition
-
MAKE CRITICAL DECISIONS QUICKLY
Exceptional measurement accuracy, crisp thermal imagery, and workflow optimizations help you collect and share critical data faster
SPECIFICATIONS
OVERVIEW
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading
- IR Resolution
- 640 × 480 pixels
- Laser Pointer
- Yes
- Screen EST Mode
- Yes
- Sampling Average in Screen EST Mode
- Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
- Accuracy [Drift] in Screen EST Mode
- Accuracy (drift): ±0.3°C (±0.5°F)
CONNECTIONS & COMMUNICATIONS
- Communication Interfaces
- USB 2.0, Bluetooth, Wi-Fi
- METERLiNK
- Yes
IMAGING & OPTICAL
- Color palettes
- Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Detector Type and Pitch
- Uncooled microbolometer, 12 µm
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Digital Zoom
- 1-8x continuous
- f-number
- 1.5
- Focus
- Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
- Global Positioning System [GPS]
- Automatic image tagging
- Image Frequency
- 30 Hz
- Image Sketch
- From touchscreen, on infrared image only
- Lens Identification
- Automatic
- Minimum Focus Distance
- 1.0 m
- Non-Radiometric IR or Visual Video
- H.264 to memory card
MEASUREMENT & ANALYSIS
- Area measurement information
- Yes; calculates area inside measurement box in m² or ft²
- Laser Distance Meter
- Yes; dedicated button
- Measurement Presets
- No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
METER DATA
- Display
- 4", 640 × 480 pixel touchscreen LCD with auto-rotation
POWER
- Battery operating time
- Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery type
- Li-ion battery, charged in camera or on separate charger
STORAGE MEDIA
- Image File Format
- Standard JPEG with measurement data included
- Image Storage Mode
- Infrared, visual, MSX®, Picture-in-Picture
